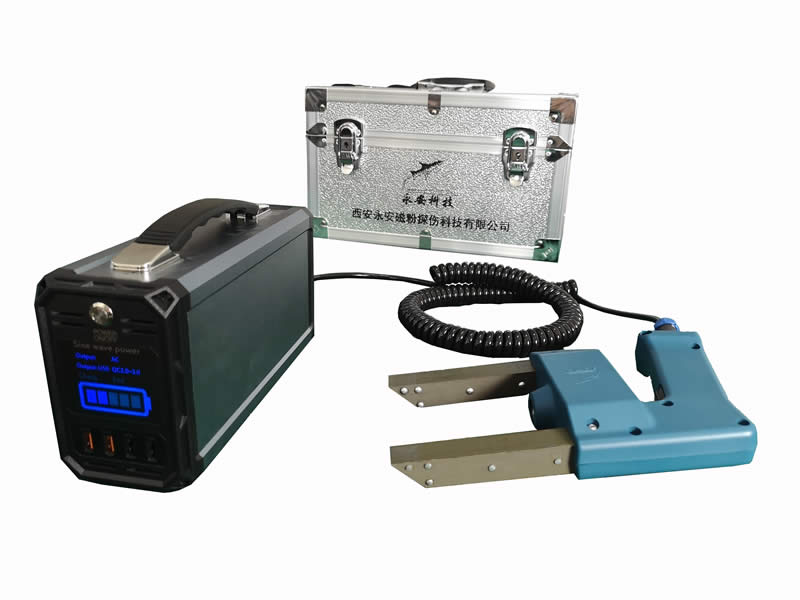

QCJ-Ⅲ型充电便携磁轭探伤仪

适用范围

对各种铁磁性材料或制件进行局部磁粉探伤检测，可检测其表面、近表面缺陷

特点及技术指标

1.    结构小巧，移动方便，高品质锂离子聚合物电池供电，工作时无需插接固定电源，更方便生产现场使用。

2.    磁轭采用超高导磁铁芯、一体化线圈，磁密度大，磁化效率高，重量轻，发热少，可以连续工作，寿命长。

3.    便携式充电交流磁化电源采用微电脑控制，具有智能化和自适应能力。

4.    磁轭探头集成有高亮LED照明装置，亮度高，抗冲击，可靠性高。

5.    锂电池配有专用充放电保护装置，工作安全，使用寿命长。

6.    磁化电源有过充、过流、过放、过温保护功能，防止意外损坏。

7.    磁化电源具有智能短路断电保护及控制功能,防止仪器电源过载损坏。

8.    电源输出功率：AC300W;

9.    电池容量：60000mAh

10.  充电时间：＜4-5h

11.  满电工作时间：≥8h

12.  电源重量：2.5kg；

13.  磁轭探头工作电流0.3-0.7A；

14.  提升力：圆柱试块≥3.5kgf

15.  磁极间距：100mm

16.  照度：≥1200Lx

17.  探头尺寸：250*15*45（mm）

18.  探头重量：1.6kg；

QCJ-Ⅲ Portable-rechargeable magnetic yoke flaw detector

 Applicable scope

It is suitable for magnetic particle inspection of various ferromagnetic materials or workpieces, and can be used to detect surface and near-surface defects

Features and Technical parameters

1.      Compact structure, easy to move, high quality lithium ion polymer battery , no need to plug fixed power , more convenient to use in the production site

2.      The magnetic yoke adopts ultra-high magnetic core and integrated coil, featuring high magnetic density, high magnetization efficiency, light weight, little heating, continuous operation and long service life.

3.      Portable charging ac magnetization power supply is controlled by microcomputer, which is intelligent and adaptive.

4.      The magnetic yoke is integrated with high-brightness LED lighting device, featuring high brightness, shock resistance and reliability.

5.      Lithium battery is equipped with special charging and discharging protection device, which is safe to work and has a long service life.

6.      The magnetization power supply has overcharge, overcurrent, overdischarge and overtemperature protection functions to prevent accidental damage.

7.      The magnetized power supply has the function of intelligent short-circuit power off protection and control to prevent the instrument from power overload damage.

8.      Power output: AC300W;

9.      Battery capacity: 60000mAh

10.    Charging time: < 4-5h

11.    Full power working time: 8h

12.    Power supply weight: 2.5kg;

13.    Working current of yoke probe is 0.3-0.7a;

14.    Lifting force: cylinder block 3.5kgf

15.    Magnetic pole spacing: 100mm

16.    Illumination: 1200Lx

17.    Probe size: 250*15*45 (mm)

18.    Probe weight: 1.6kg;
