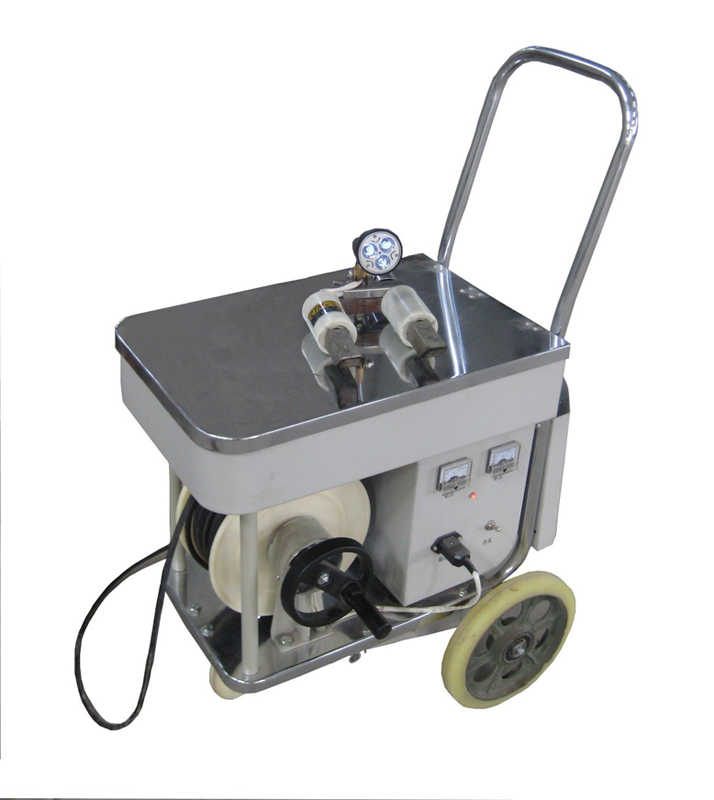

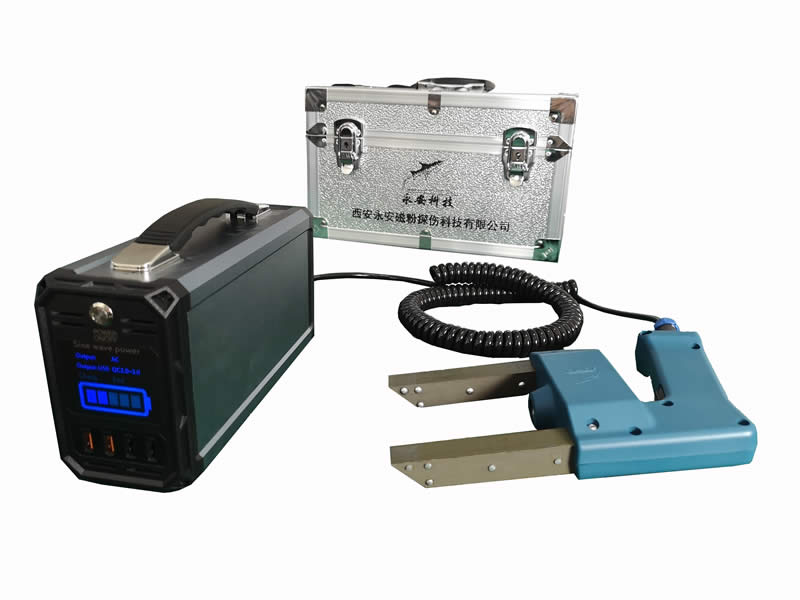

QCJ-Ⅱ型轻便磁粉探伤机

该探伤机按主机（电源）结构分为手推车式和便携式（手提电源式）两种，均配套CTM-II系列探伤器，该探伤器有普通干法形式和全封闭湿法形式两种

适用范围

对铁磁性材料制件进行局部磁粉探伤检测，可发现其表面、近表面缺陷

特点及技术指标

1.        结构小巧，移动方便，应用广泛

2.        专有技术的磁化电源具有自动稳压、电缆短路保护功能

3.        磁化电源具有宽电压适应特性，允许电压波动范围大

4.        探伤器铁芯采用进口高导磁率定晶硅钢片，性能稳定检测灵敏度高

5.        探伤器磁极间距连续可调，便于适应不同大小、形状探伤对象的需要

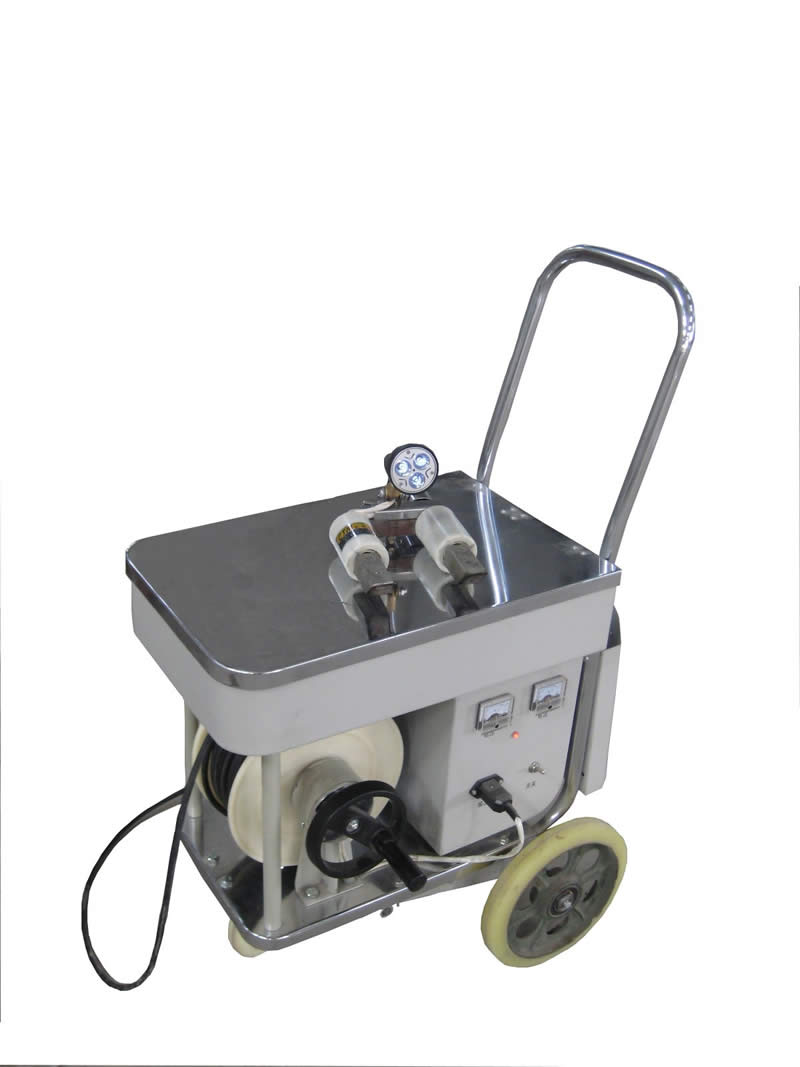

6.        专用轻便推车设有弹性悬架减震结构，带有探头收纳箱和工具存放盒

7.        便携式磁化电源带有手提把，方便现场使用

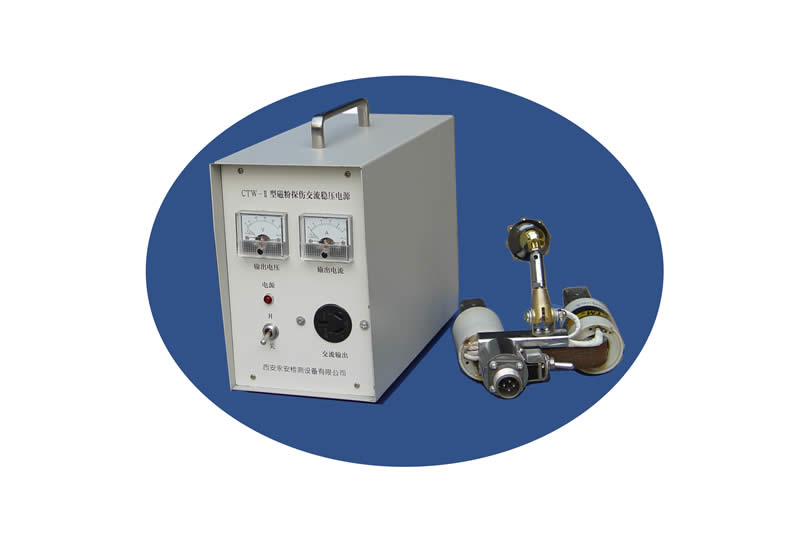

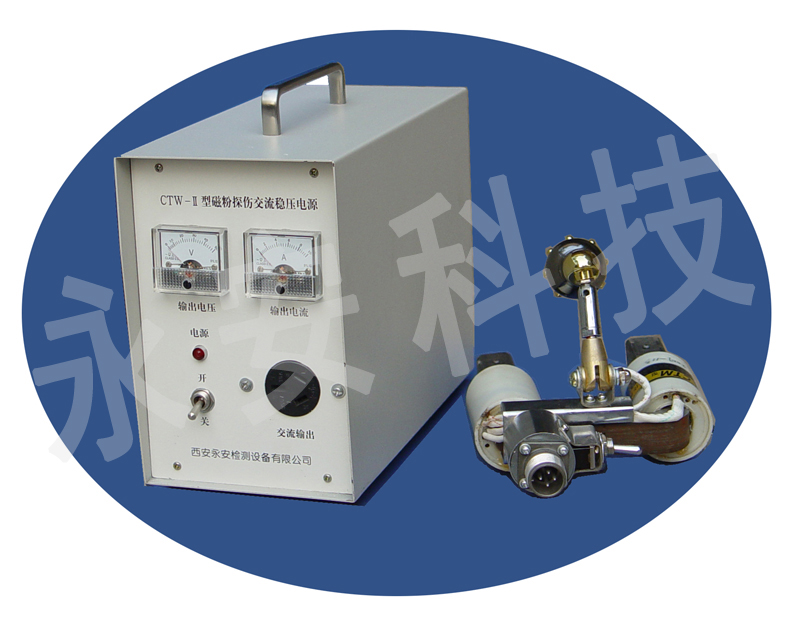

QCJ-Ⅱ型探伤机（CTW-Ⅱ型稳压电源）主要技术指标

1.        输入电压                   220 V

2.        输入电压允许波动范围       160 V ~260 V

3.        稳压输出                36（±10%）V

4.        电源频率                     50Hz

5.        额定功率                     0.5 kW

6.        额定输出电流                  14 A

7.        温升                        ≤50 ℃

8.        自重                      39（9.9） kg

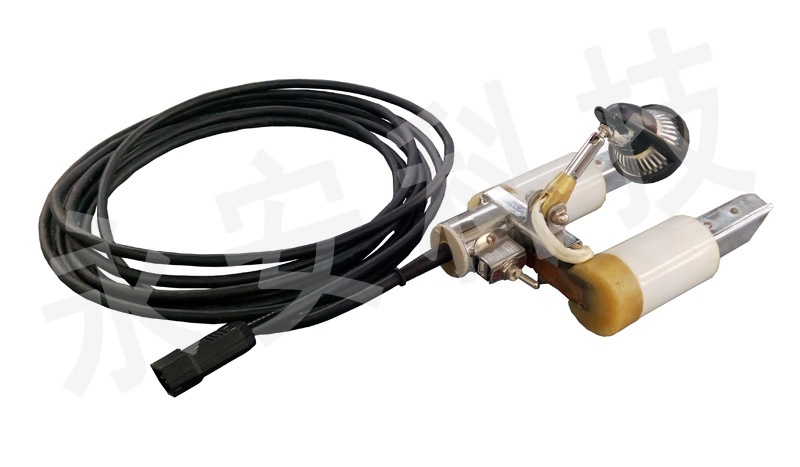

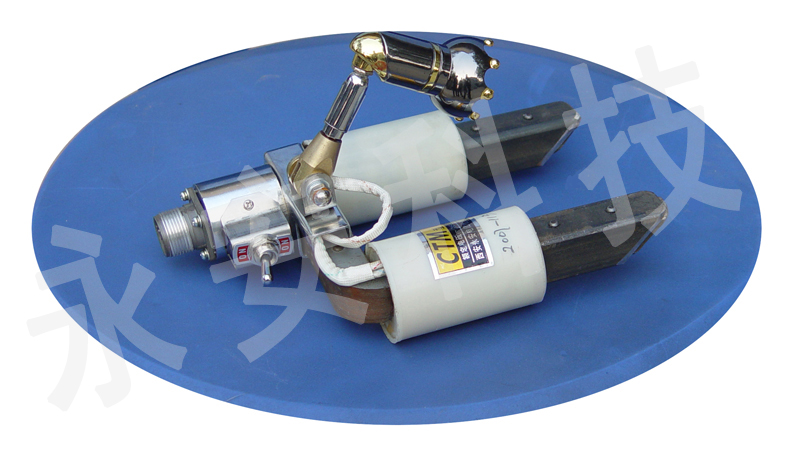

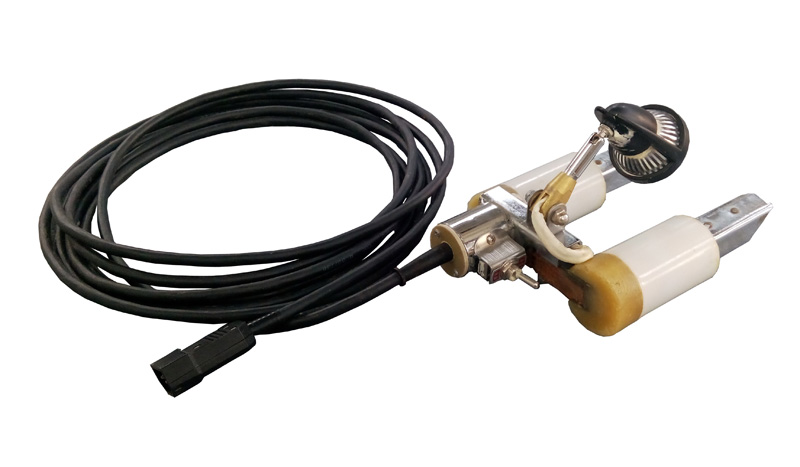

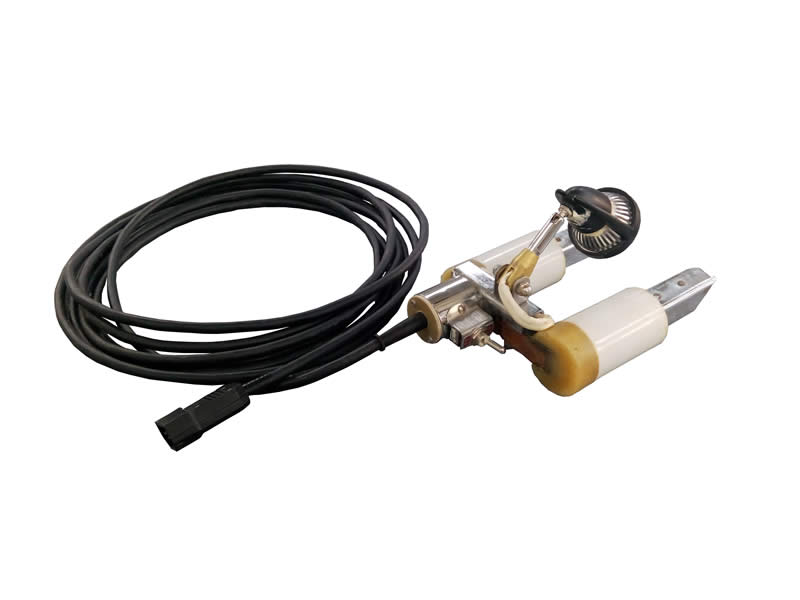

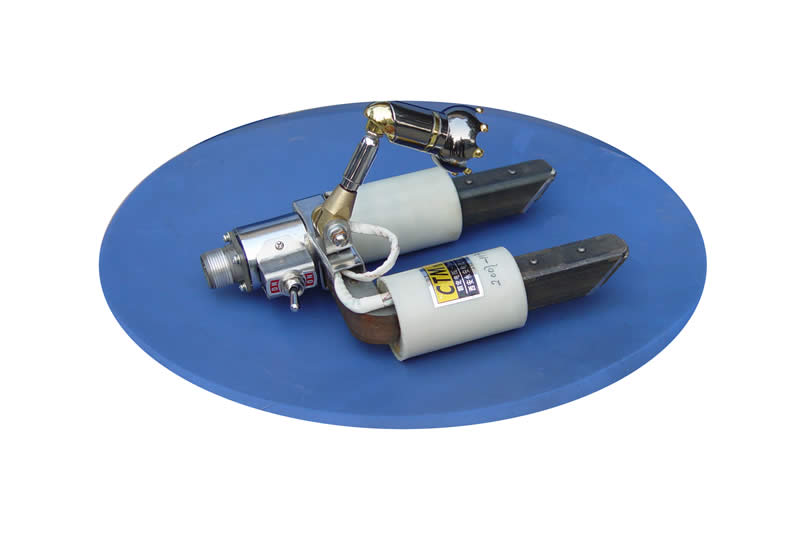

CTM-Ⅱ型探伤器主要技术指标：

1.        额定工作电压           36 V

2.        额定工作电流            5 A

3.        磁轭臂长度                      150 mm

4.        磁轭跨度（间距）   30-160 mm

5.        提升力                    ≥3.5kg

6.        温升                 ≤50℃

7.        自重                   2.3kg

QCJ-II Mobile magnetic particle flaw detector

Including two kinds，trolley(handcar) magnetic particle detector and portable magnetic particle detector, All form a complete set of CTM - II series detector, Flaw detector is divided into two kinds of dry method and wet method

Applicable scope

For the ferromagnetic material local magnetic powder flaw detection, can find its surface and near surface defects

Features and Technical parameters

1.         Compact structure, convenient to move, and widely used

2.         Magnetic power automatic voltage regulator, short circuit protection function

3.         Magnetization adaptive character with wide voltage allows a large range of voltage fluctuation

4.         Flaw detector core adopts high permeability crystalline silicon steel sheet production, stable performance high detection sensitivity

5.         Flaw detector magnetic pole spacing adjustable, easy to adapt to the needs of different size, shape detection object

6.         Dedicated trolley(handcar) equipped with elastic suspension structure, with probe locker and tool storage box

7.         Portable magnetic power supply a handle, convenient for use

Technical parameters of QCJ-II Mobile magnetic particle flaw detector(with CTW-II power)

1.        input voltage       :                220 V

2.        input voltage        fluctuation range:     160 V ~260 V

3.        output voltage:                 36（±10%）V

4.        power frequency:               50Hz

5.        rated power:                   0.5 kW

6.        rated out current:                       14 A

7.        temperature rising:               ≤50 ℃

8.         dead weight:                         39（9.9） kg

Technical parameters of CTM - Ⅱ flaw detector

1.        rated operation voltage:           36 V

2.        rated operation current:            5 A

3.        magnet yoke length:                   150 mm

4.        magnet yoke span(spacing):     30-160 mm

5.        elevating force:                  ≥3.5kg

6.        temperature rising:              ≤50℃

7.        dead weight:                    2.3kg
