产品名称: XWD-B型旋转磁场床式多功能探伤机 适用范围: 适用于复杂形状零件和杆件的磁粉探伤检测,如机车车辆的异型件、齿轮、轴销类零件的磁粉探伤。
规  格: XWD-B 产品类别: 旋转磁场床式系列磁粉探伤机

产品说明

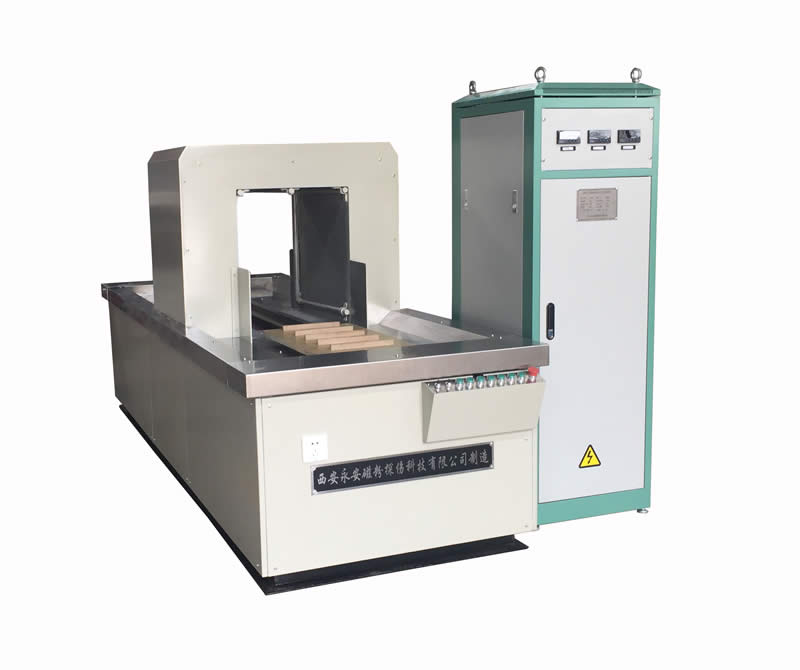

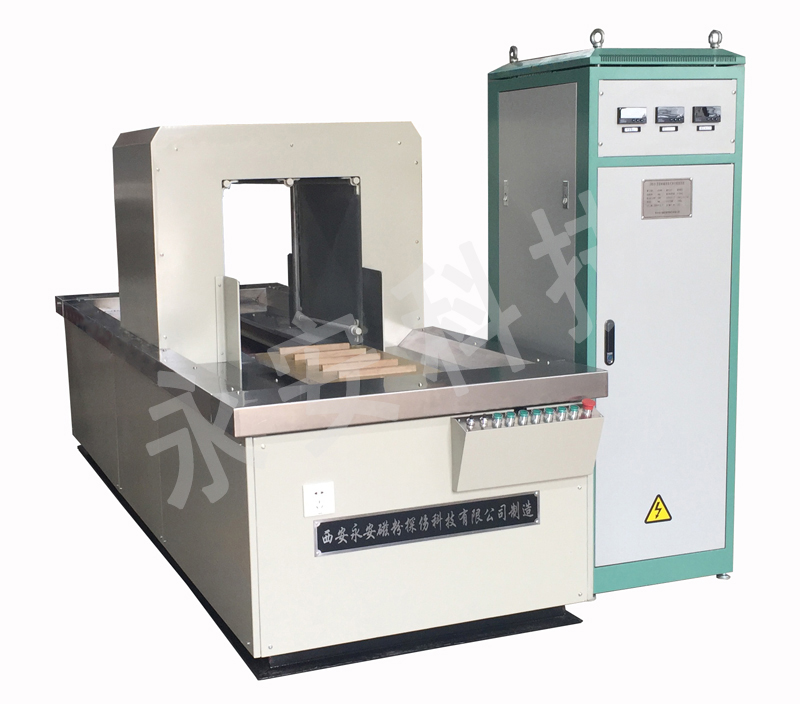

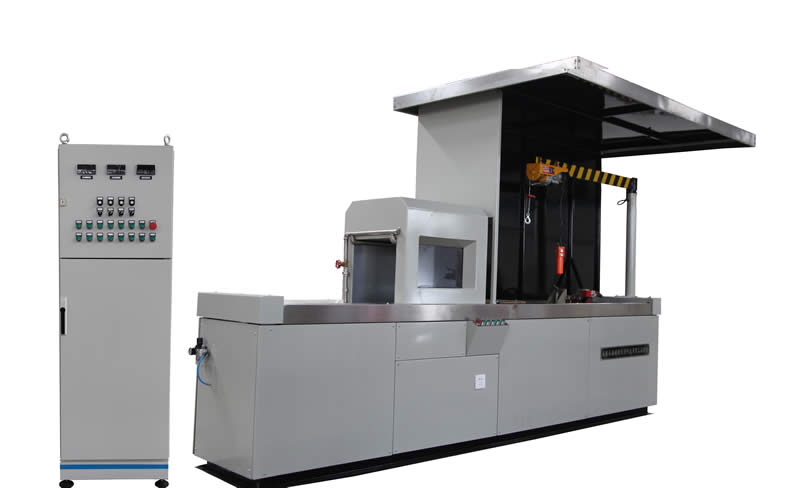

XWD-B型旋转磁场床式多功能探伤机



适用范围

适用于复杂形状零件和杆件的磁粉探伤检测,如机车车辆的异型件、齿轮、轴销类零件的磁粉探伤。

特点及技术指标

1.   采用旋转磁场磁化技术满足复杂形状工件探伤的要求

2.   隧洞式旋转磁场磁化装置配合探伤小车,适合各种复杂形状零部件探伤的需要,可实现一次磁化探伤多个工件

3.   探伤过程采用进口PLC可编程控制器控制,操作简便可靠

4.   探伤小车实现了旋转磁化与周向磁化的组合,操作方便

5.   磁化电流不等值衰减,剩磁小

6.   床式一体化设计,安装调试简便

7.   磁化方式:旋转磁场+周向磁场

8.   输入功率:40kW

9.   旋转磁化峰值电流:0-2500A连续可调

10. 周向磁化峰值电流:0-1500A连续可调

11. 检测灵敏度:清晰显示A1型标准试片15/50的人工缺陷

12. 旋转磁化有效范围:600mm

13. 旋转磁场磁化通道截面:400×300mm(可订制)

14. 检测杆轴零件最大长度:1000mm


XWD-B Rotary Magnetic Field Bed type multifunctional flaw detector



Applicable scope

It is suitable for magnetic particle inspection of complicated shape parts and bars, such as abnormal parts, gears and shaft pin parts of locomotives

Features and Technical parameters

1.      Rotating magnetic field magnetization technology is adopted to meet the requirements of flaw detection of workpieces with complex shapes

2.      The tunnel-type rotating magnetic field magnetization device, combined with the flaw detection car, is suitable for the flaw detection needs of parts with various complex shapes, and can realize the single magnetization flaw detection of multiple workpieces

3.      The inspection process is controlled by imported PLC programmable controller, which is simple and reliable

4.      The inspection trolley realizes the combination of rotating magnetization and circumferential magnetization, which is easy to operate

5.      Non-equivalent attenuation of magnetization current and small remanence

6.      Integrated bed design, easy installation and debugging

7.      Magnetization mode: rotating magnetic field + circumferential magnetic field

8.      Input power: 40kW

9.      Rotation magnetization peak current: 0-2500a continuously adjustable

10.    Circumferential peak magnetization current: 0-1500a continuously adjustable

11.    Detection sensitivity: the manual defects of 15/50 standard sample A1 are clearly displayed

12.    Effective range of rotating magnetization: 600mm

13.    Section of magnetization tunnel of rotating magnetic field: 400*300mm (customizable)

14.    Maximum length of test rod and shaft parts: 1000mm
